Input Voltage: AC90-240V 50-60Hz
LED Source: 400W White LED
Control Signal: DMX 512, Master-slave and Sound activated,Auto Run
Control Channel: 23 DMX Channels
Power Consumption: 500W
Dimensions: 380x270x650mm
Net Weight: 22.5Kg
Gross Weight: 24Kg
High Brightness 400W LED Engine, long lifespan
Lumen illuminance: 5 meters 120,000 lux
540° pan and 270° tilt movement
16 bit smooth and precise resolution for PAN/TILT movement
Scan position memory, auto reposition after unexpected movement

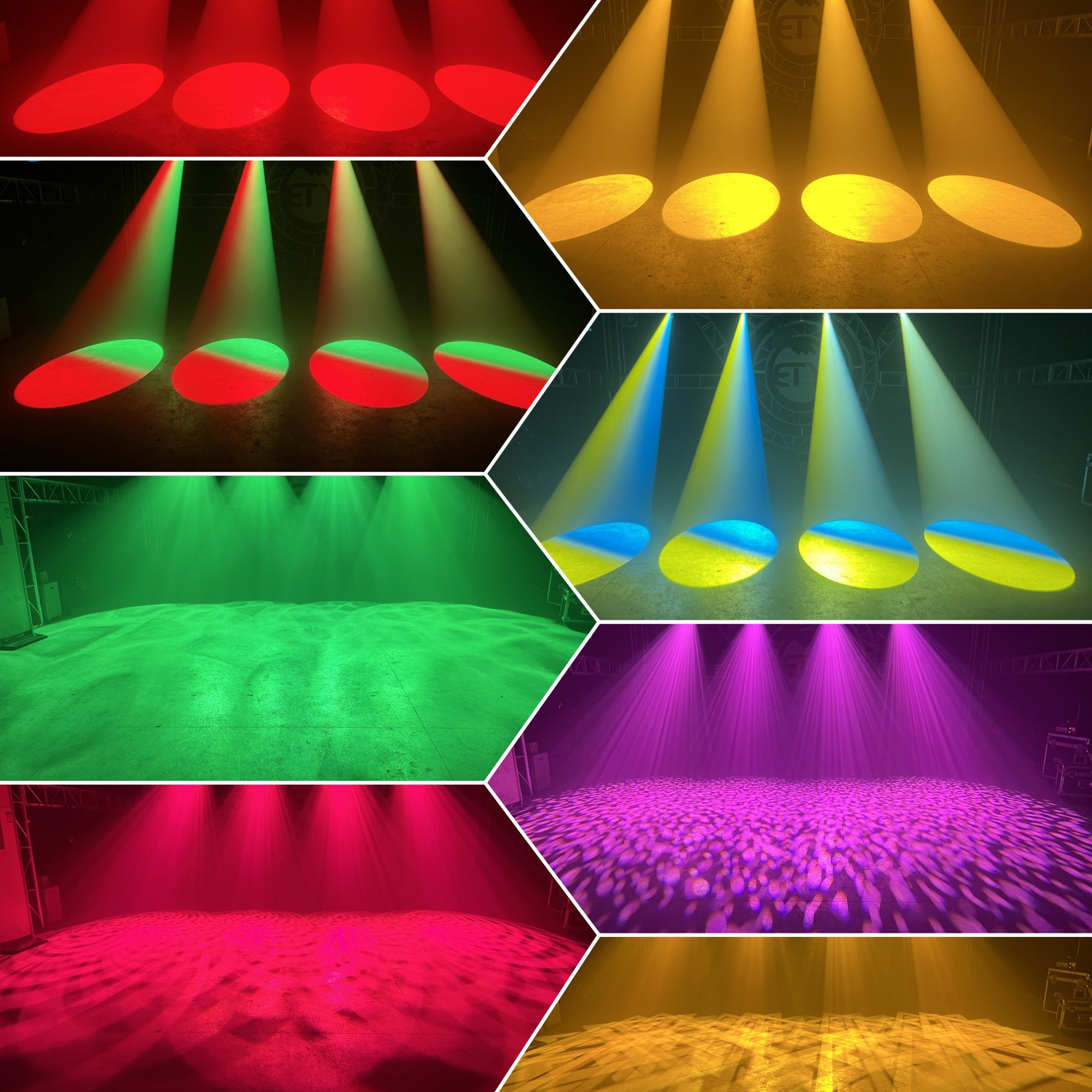

Color mixing system: linear CMY+CTO color mixing system
1 Color Wheel with 8 colors + White, Half Color effect

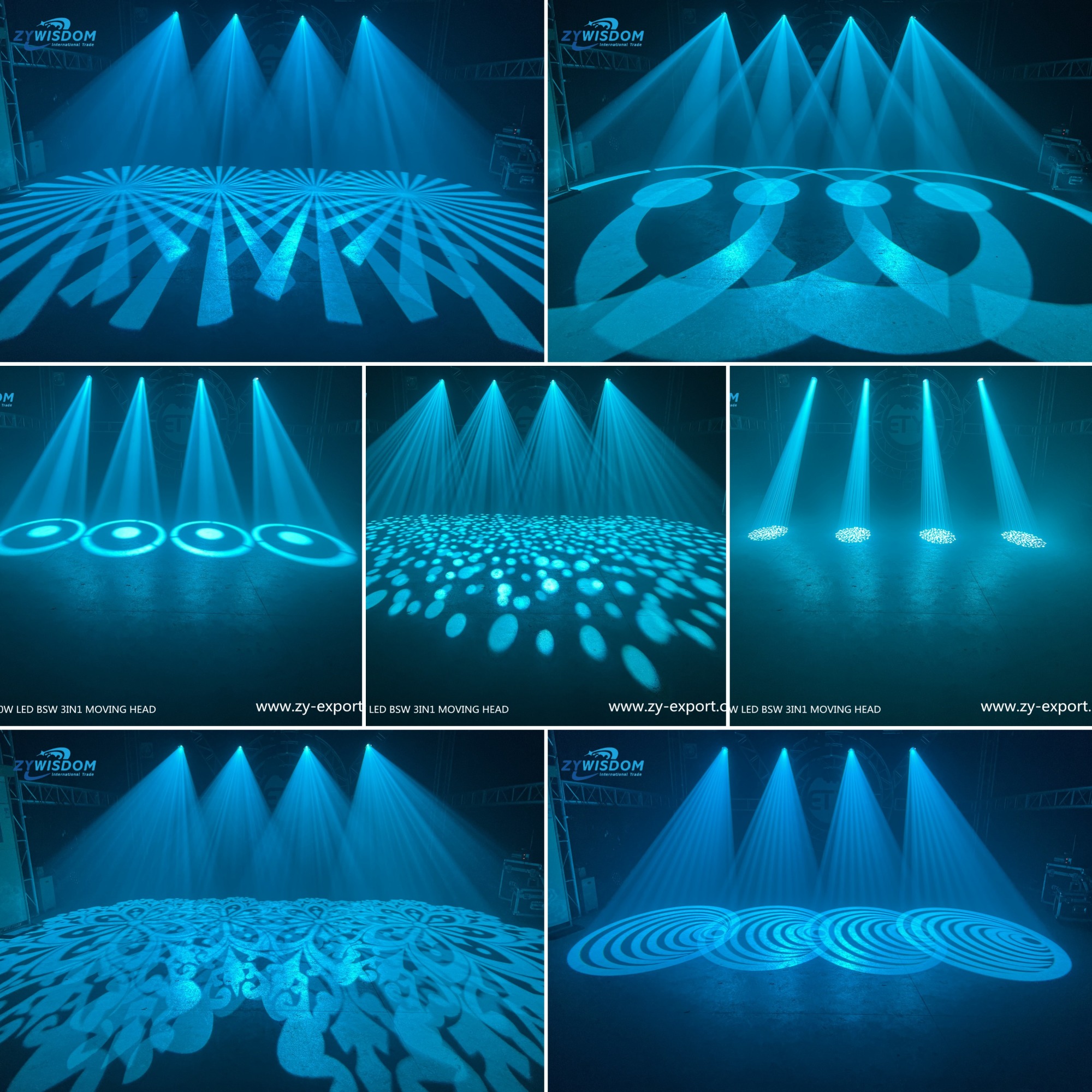

1 Rotating Gbo Wheel with 7 gobos + White

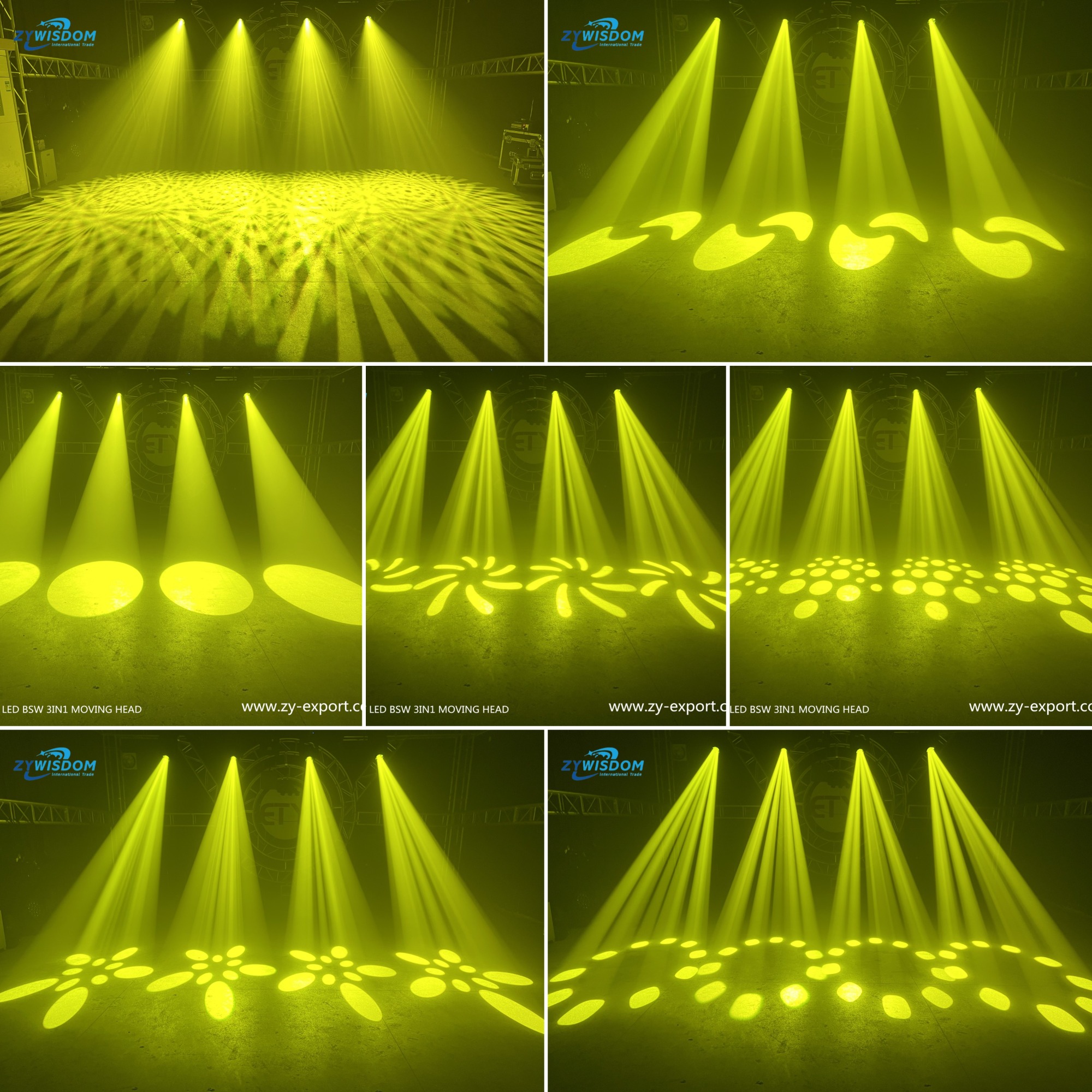

1 Fixed Gobo Wheel with 12 gobos + White
2 Prism Wheel: 8-facet Circular prism and 6-facet Linear Prism effect
Zoom angle from 4°~35°
Electric frost 、Focus、Shutter
Focusing system: linear adjustment from 4m to 50m
0-100% Linear dimmer adjustment
Working environment: -20℃- 40℃
Display mode: LCD display, key + touch dual operation mode
Pan and Tilt quick locks are convenient for product transportation
and maintenance
IP20 Protection Level, with Rain Cover protection level up to IP44
